IW-RS112-08

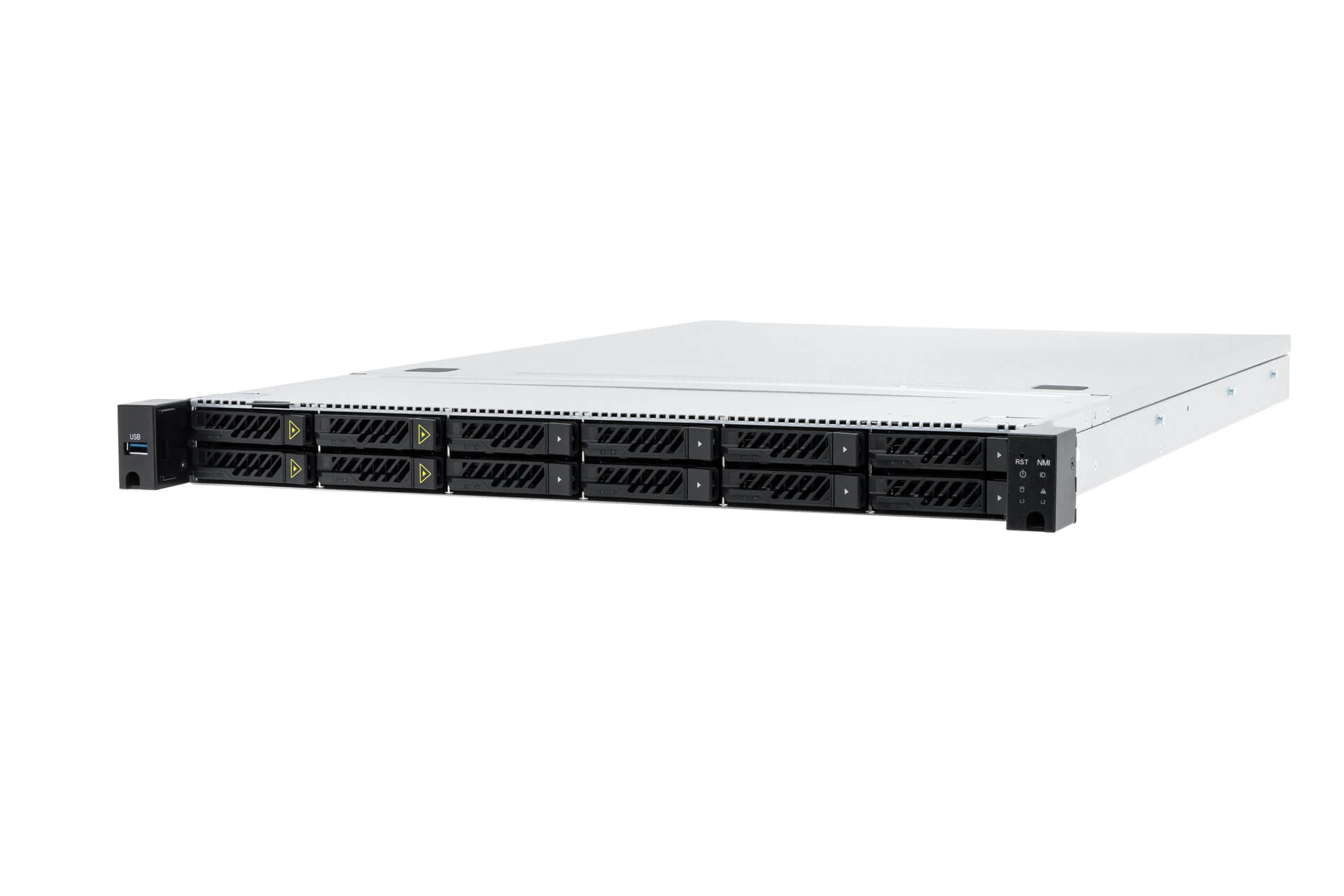

Intel Xeon Scalable 1U Storage Server
- Intel® Xeon Scalable & AMD EPYC family compliant
- PCIe Gen5, PCIe Gen4, and SAS3 hybrid backplane selections with MCIO, Slimline, and Mini-SAS HD connectors
- Compact bay deployment, supports max. SAS/SATA/U.2 NVMe SSDs x 12
- Large cooling area within the tray front panel and six easy-swap fans bring excellent airflow
- Supports FHFL PCIe slot x 1; One riser card included in accessories box
- Custom I/O shield service offered for chassis backplate to match specific motherboards with SGCC material

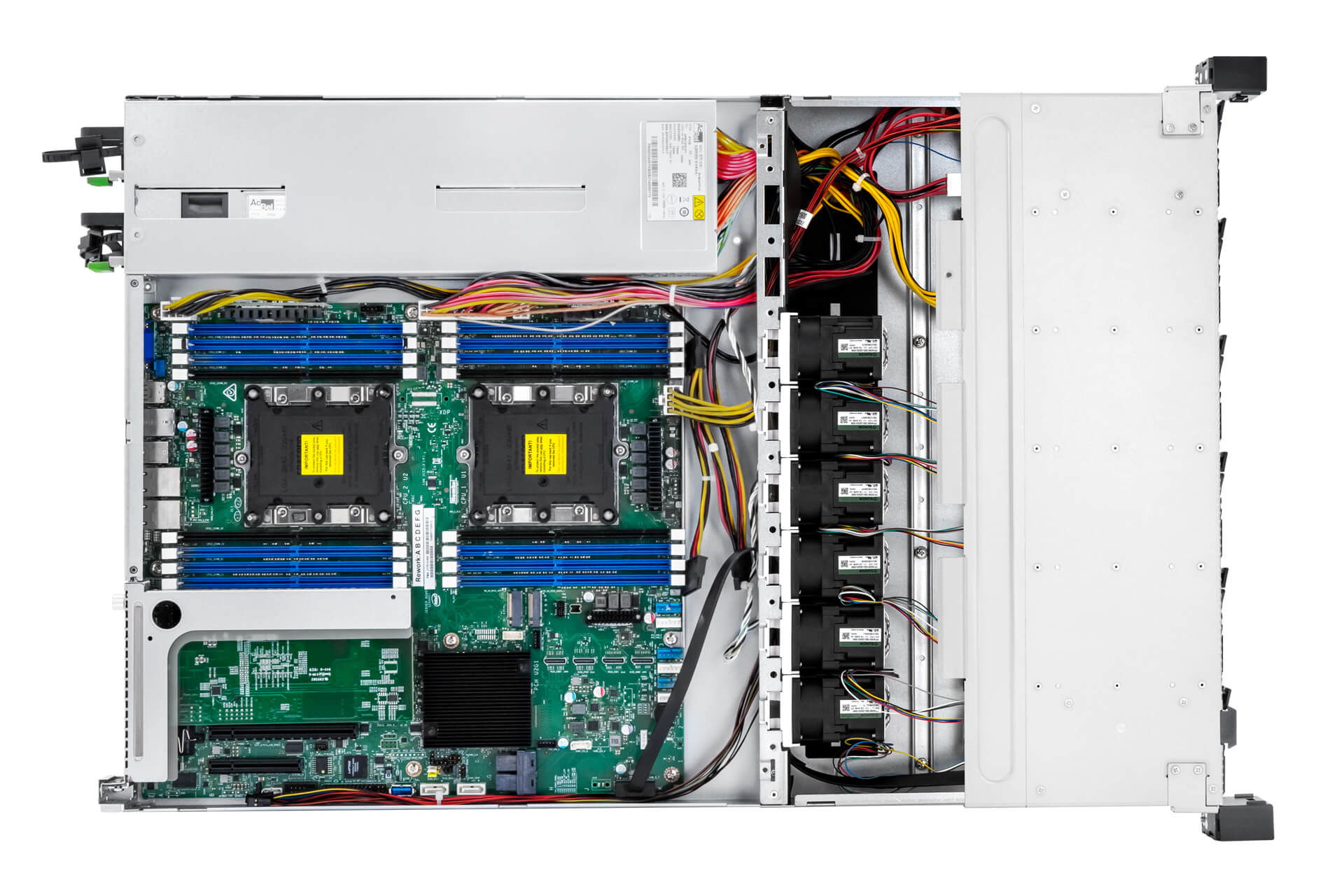

The Compact, Speedy, Hybrid Chassis!
Got a need for Speed?! The IW-RS112-08 substantially supports NVMe hybrid storages and PCIe Gen5 backplane. This 1U compact, hybrid storage server possesses powerful storage capacity that maxes out at twelve 2.5” (15mm) trays. The exclusive
tray design combined with the 40 x 56mm fans brings excellent airflow throughout the enclosure.
PCIe Gen5 ready
x 12 bays
Compliant

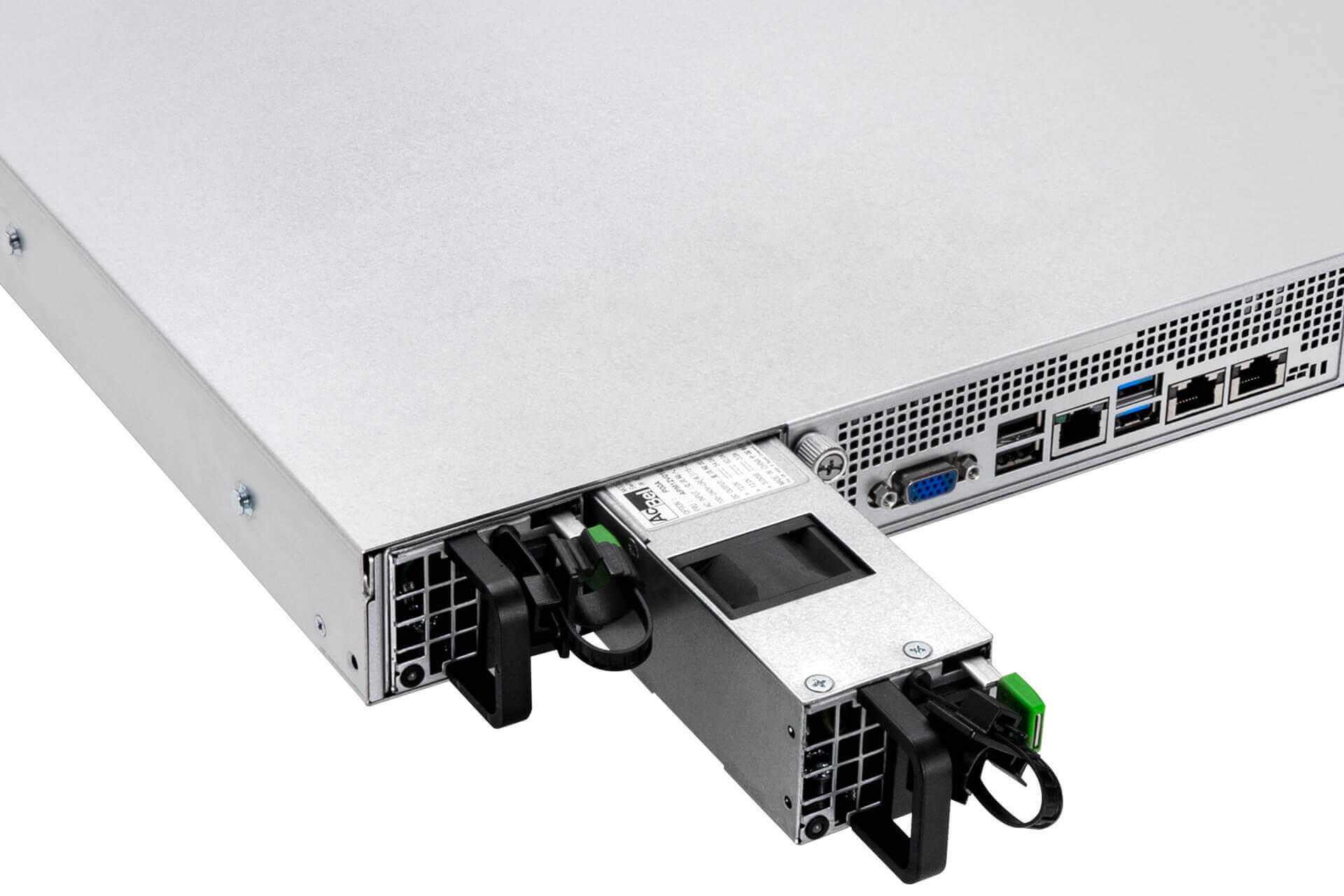

Redundant PSU 750W
PCIe slot support

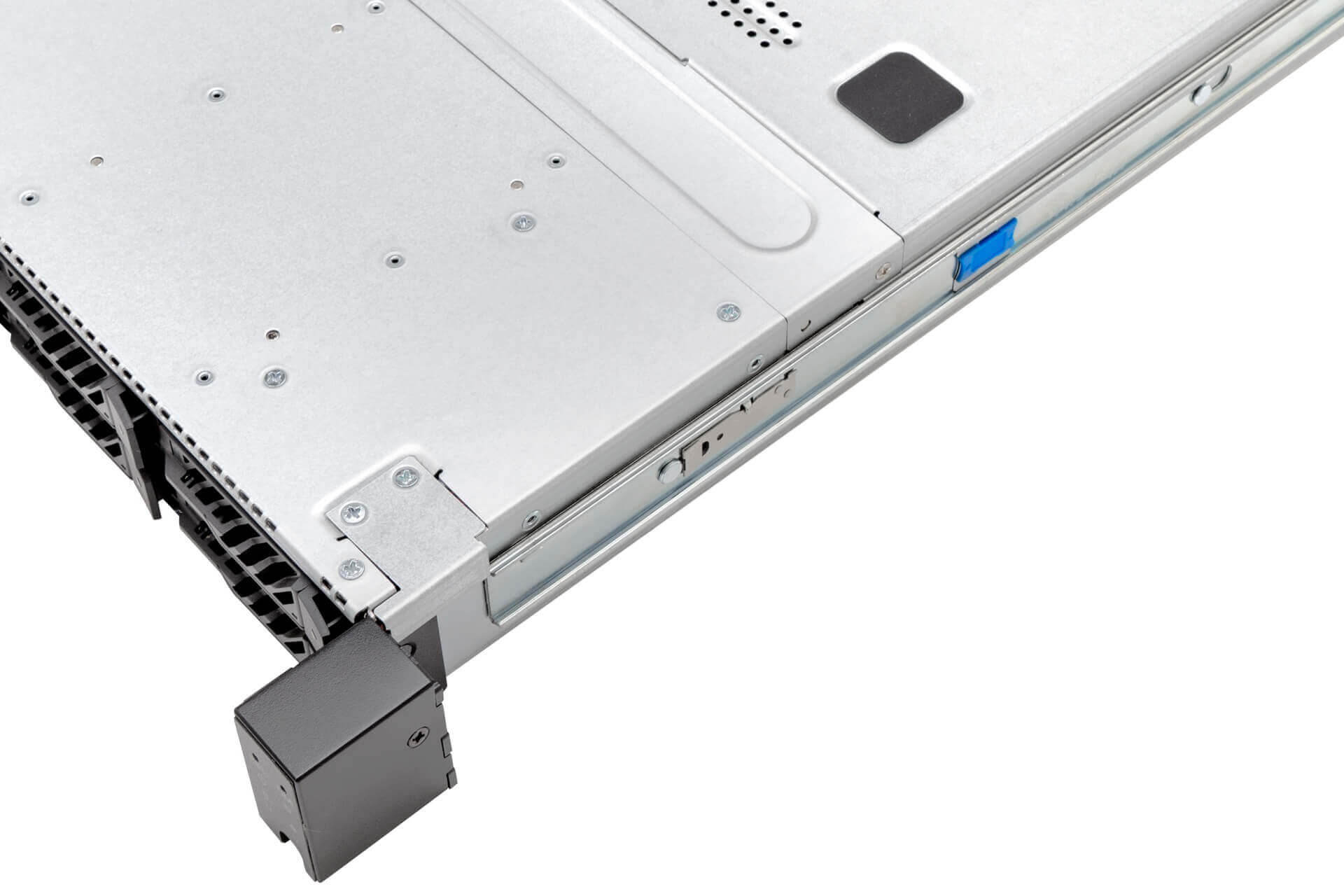

28" slide rails
26" deep chassis
40 x 56mm fans x 6

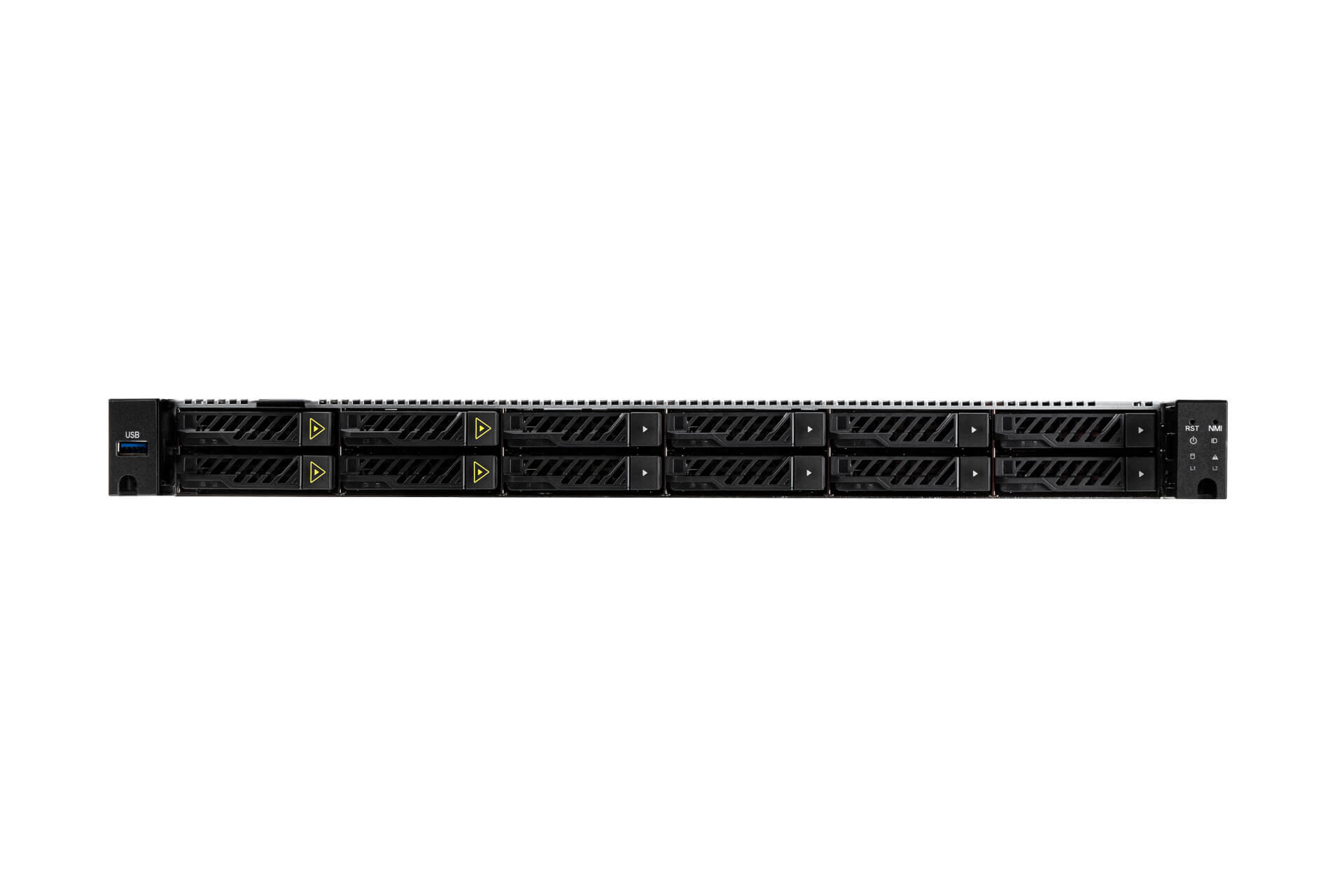

Compact with Compatibility

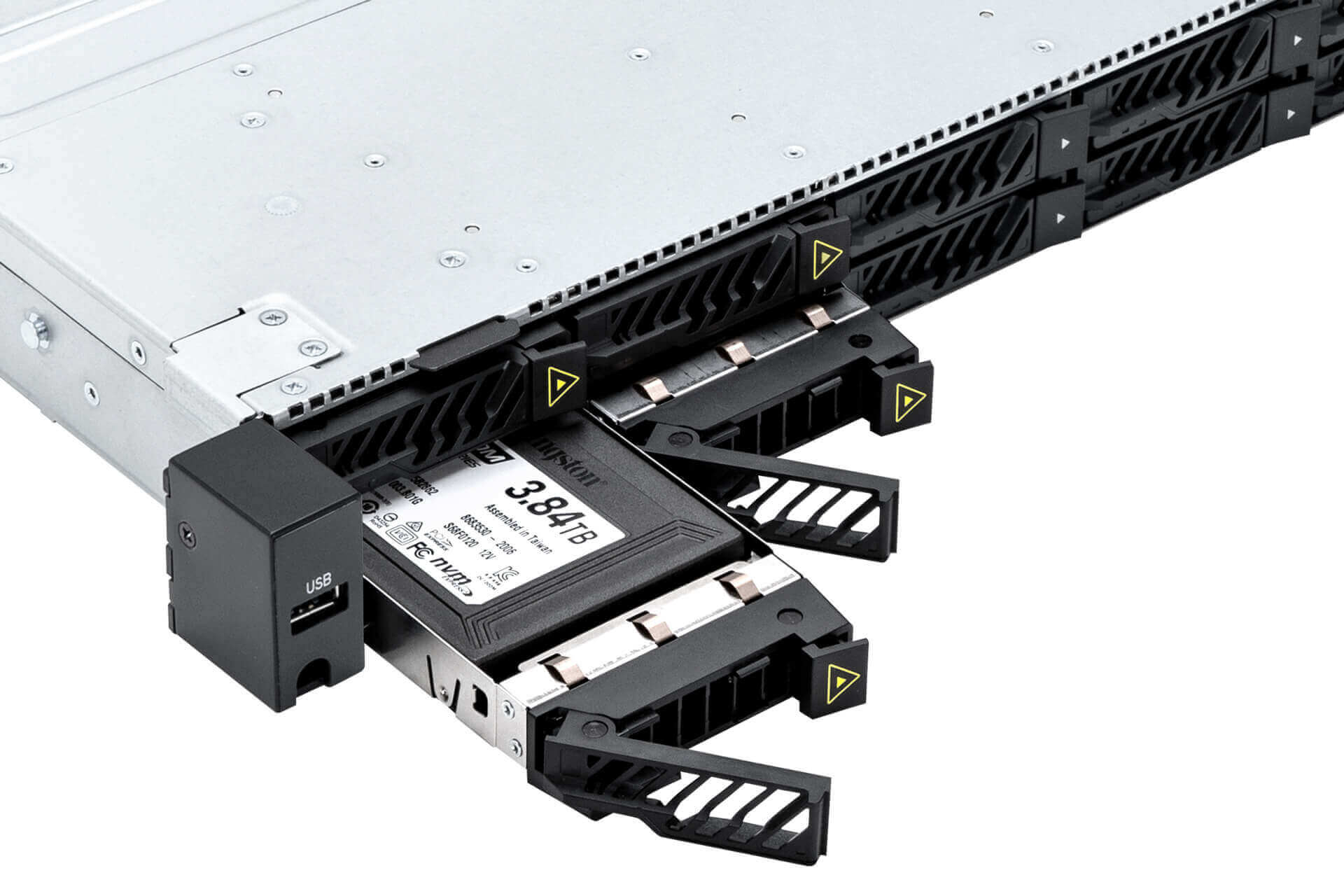

The IW-RS112-08 is compact but hosts large storage capability. This 12-bay, fully compatible with 2.5" SAS/SATA/U.2 NVMe drives (The PCIe Gen4 backplane supports up to 4 U.2 NVMe bays).
Users can enjoy the flexible storage configurations to meet their demands.
Users can enjoy the flexible storage configurations to meet their demands.
Speedy with PCIe Gen5

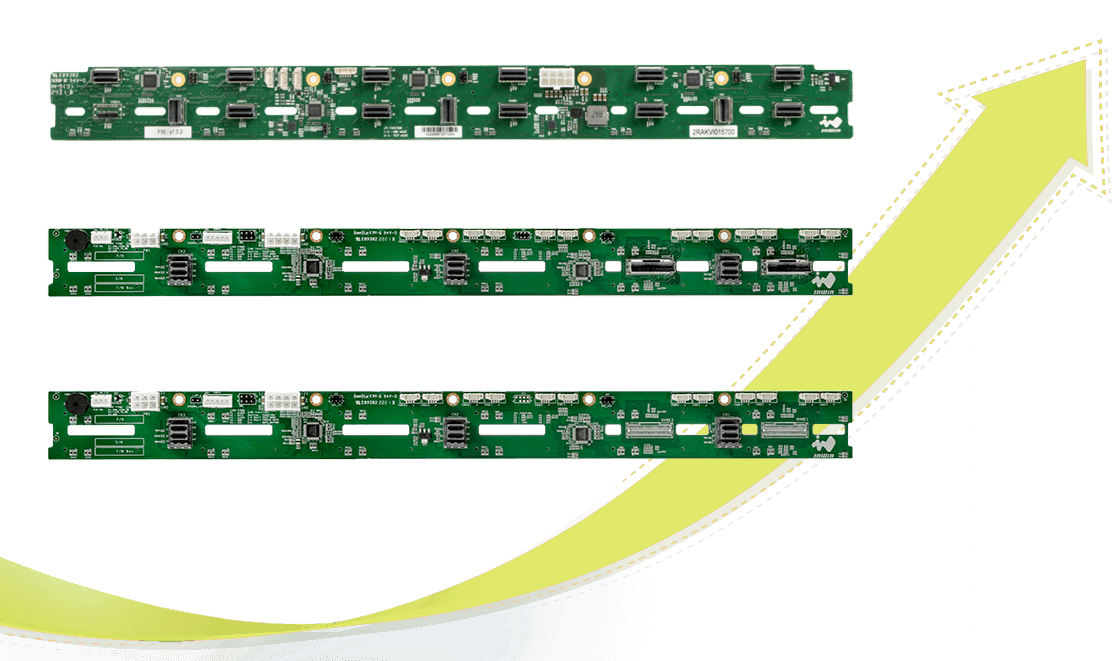

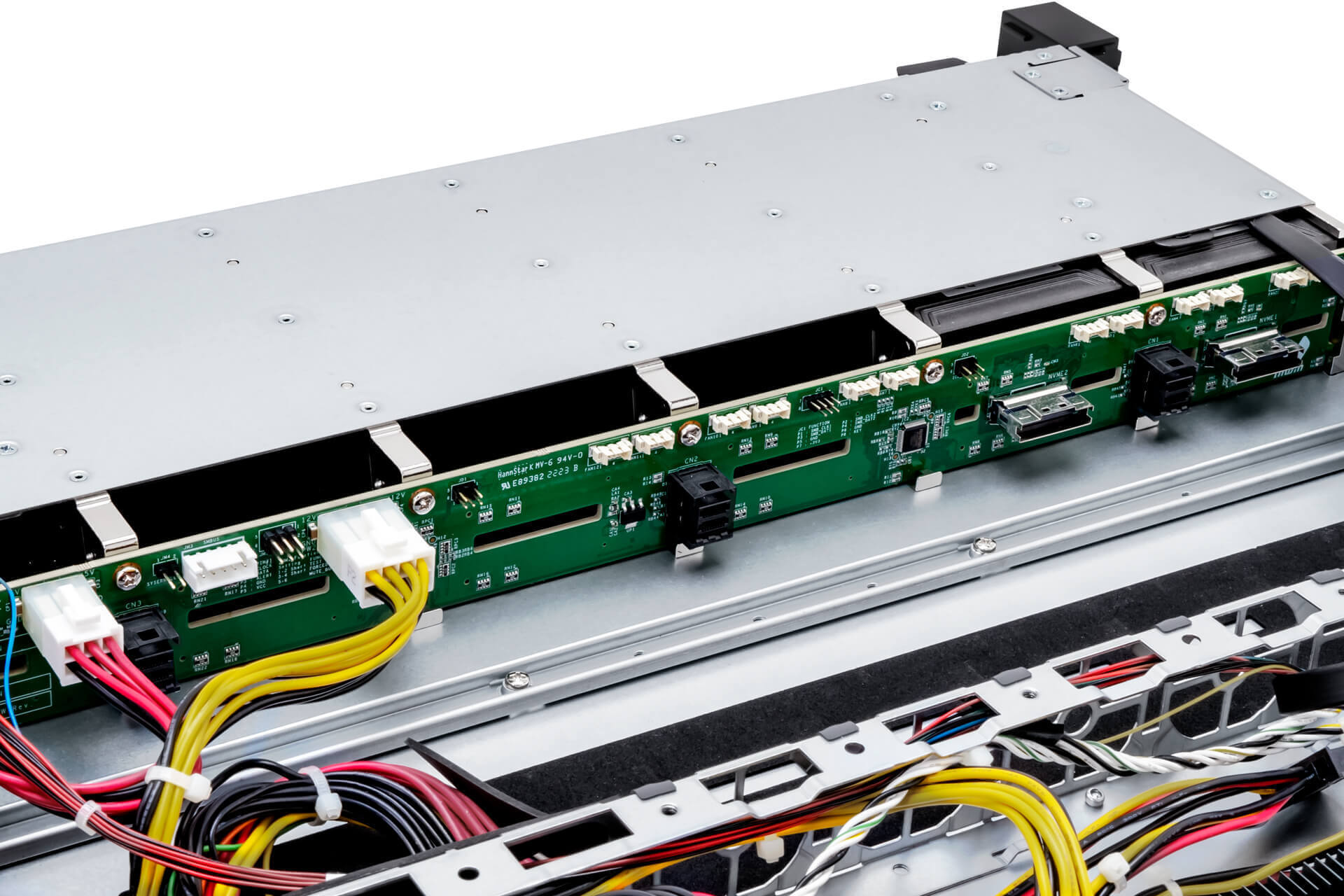

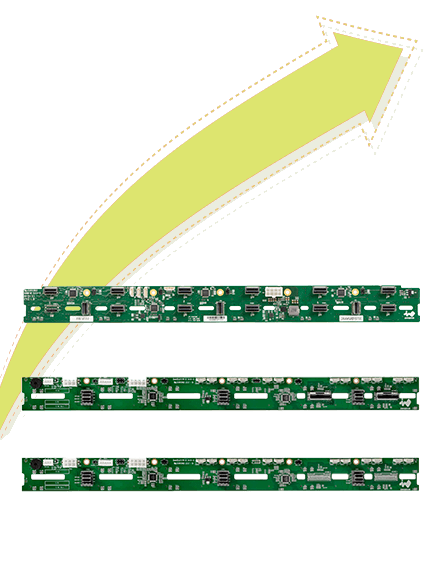

The IW-RS112-08 offers three types of hybrid backplanes: PCIe Gen5 ( MCIO4i), PCIe Gen4 (Slimline), and SAS3 (Mini-SAS HD). Users can choose backplane according to their requirements. Nevertheless, the Slimline backplanes adopting
SFF-8654 x8 slots can readily support PCIe 4.0 speeds, and with half the cables (compared with SFF-8654 x4), which can provide better cable management.
SAS4 (24Gb/s) & PCIe Gen5 (32.0GT/s)
SAS3(12Gb/s) & PCle Gen4 (16GT/s)
SAS3 (12Gb/s)
Note: The M/B & SSDs should correspond with PCIe Gen5.
Well-Engineered Airflow

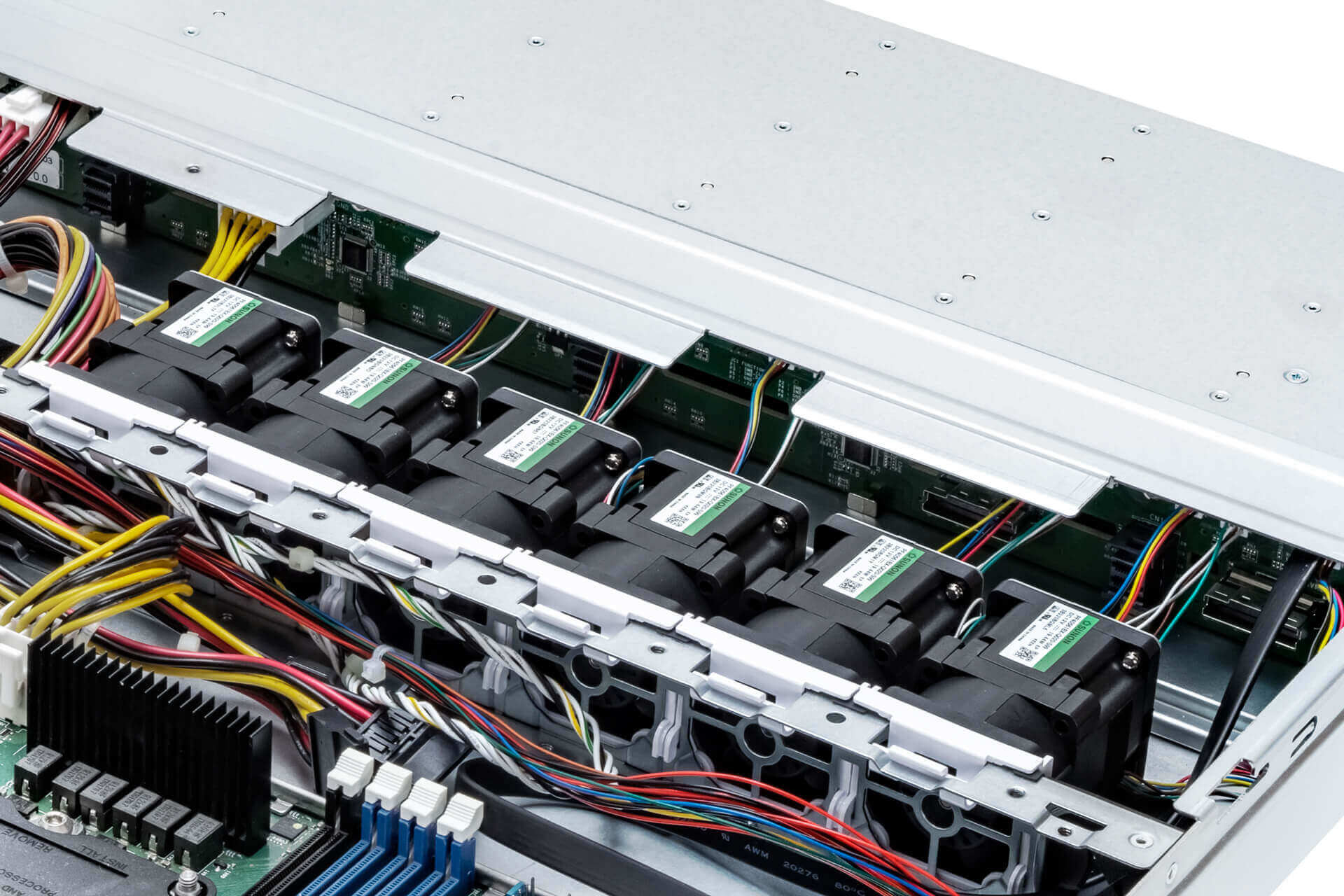

Paired with the 40 x 56mm PWM, easy-swap fans x 6 creates excellent thermal performance at 21500 RPM.
Superior Airflow
Easy-Swap Fans
Meets The Thermal Environment Requirements

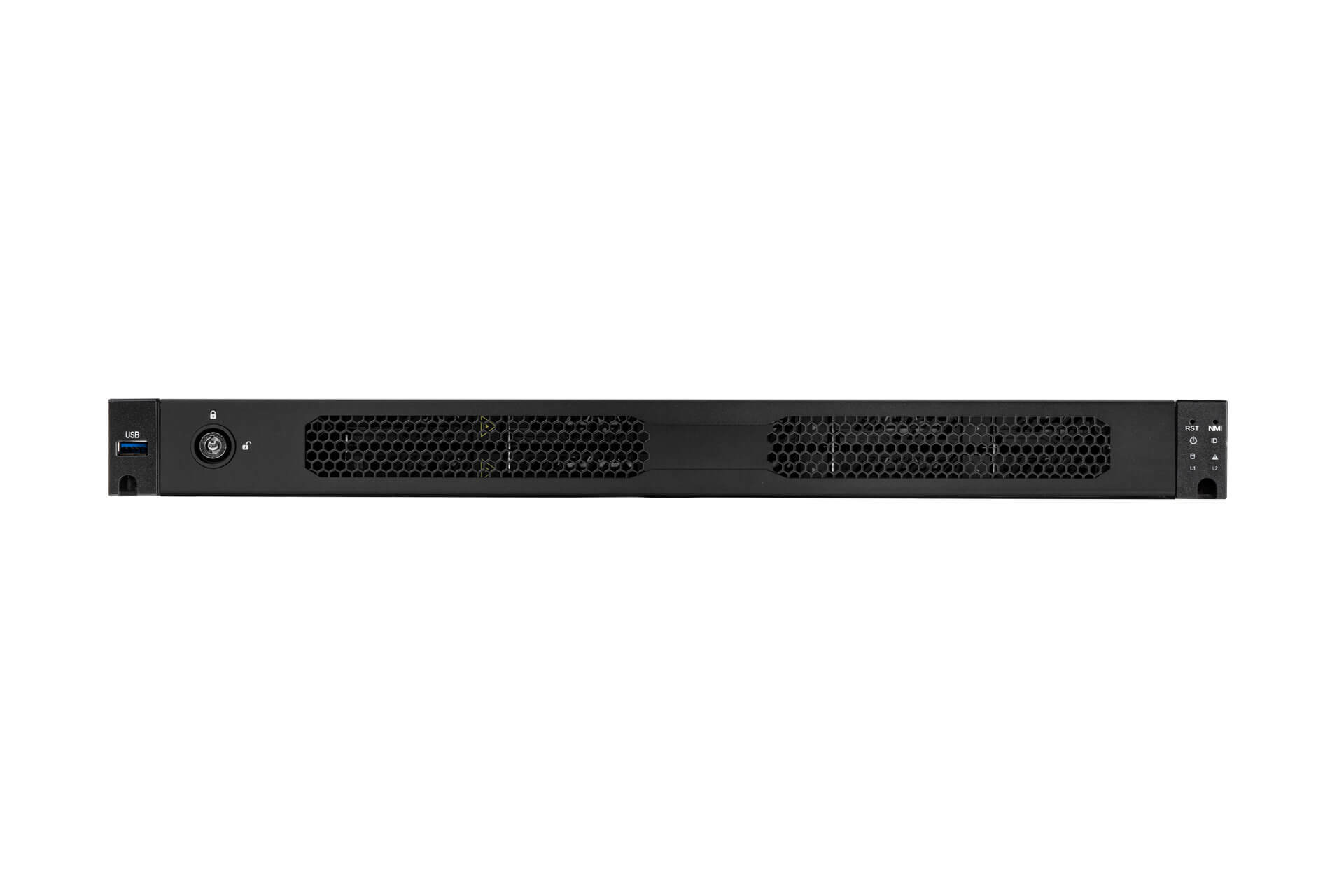

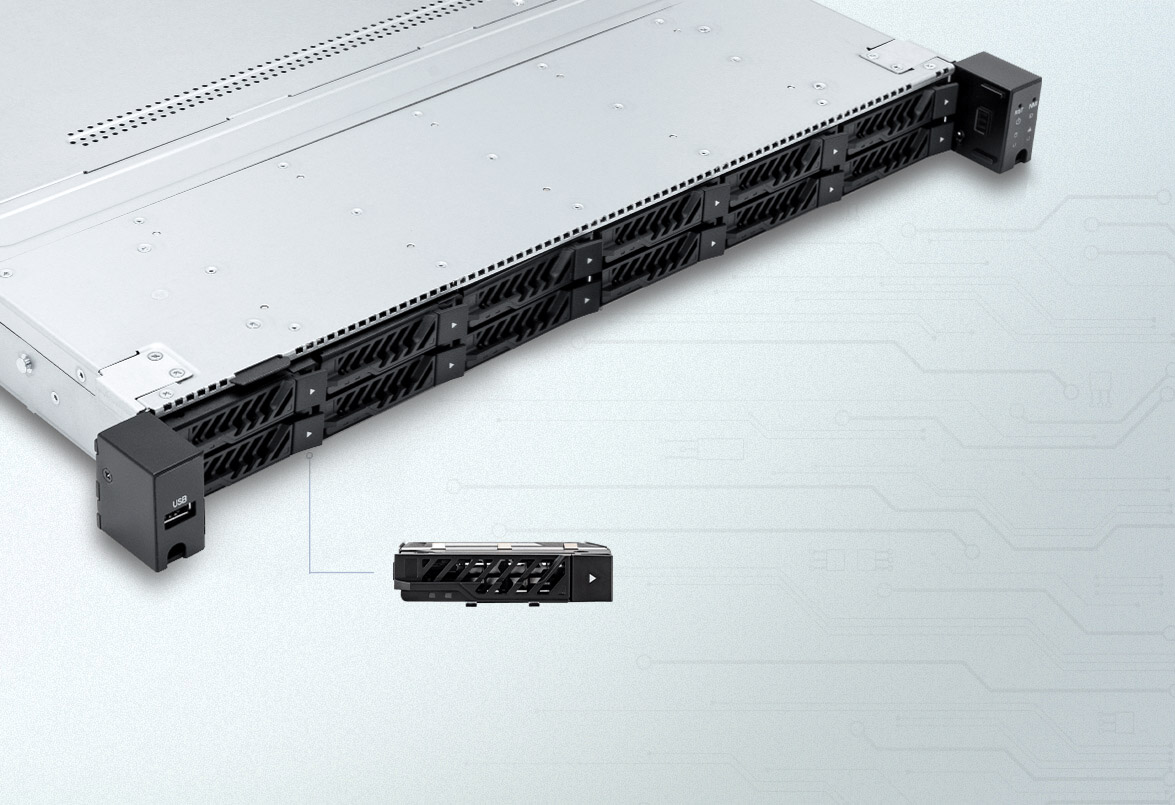

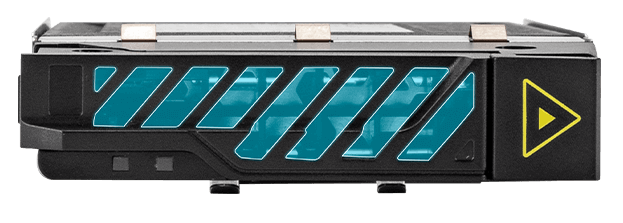

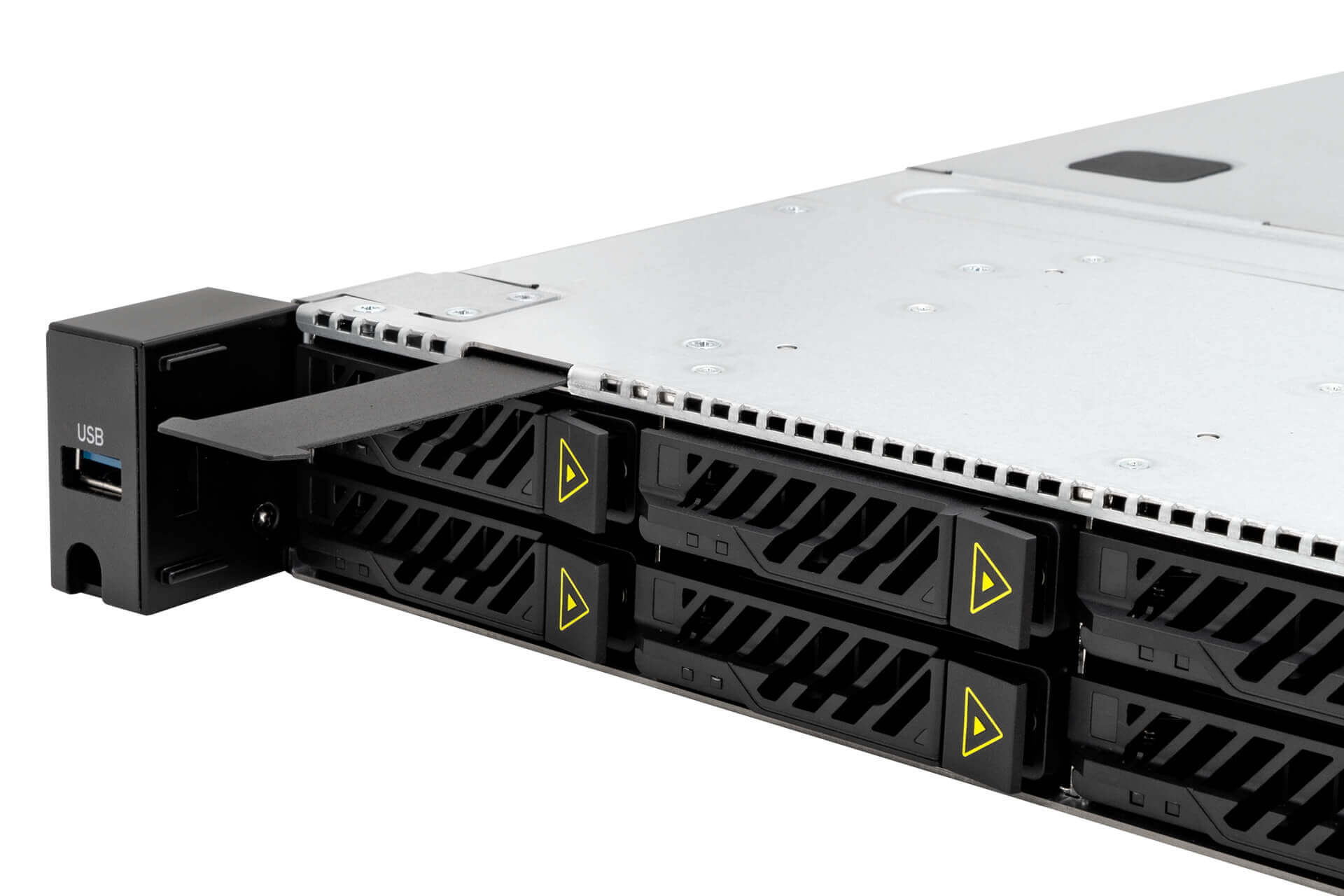

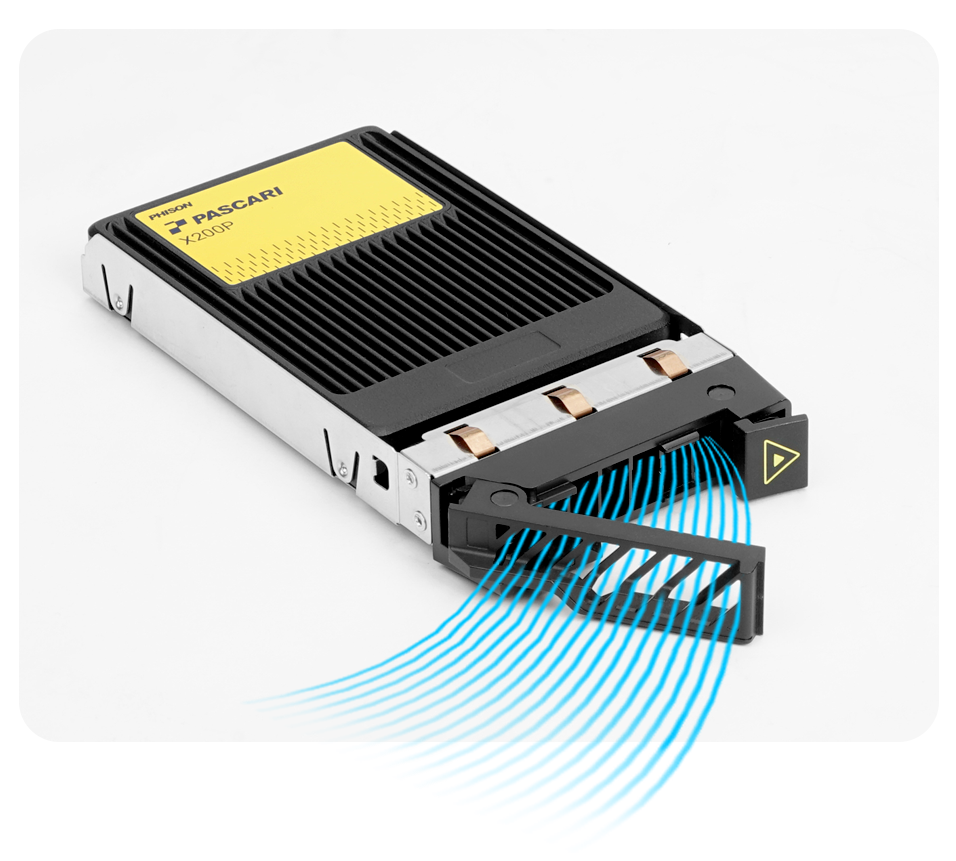

The hollowed out front panel trays increase air flow substantially compared to common solid front panel trays.

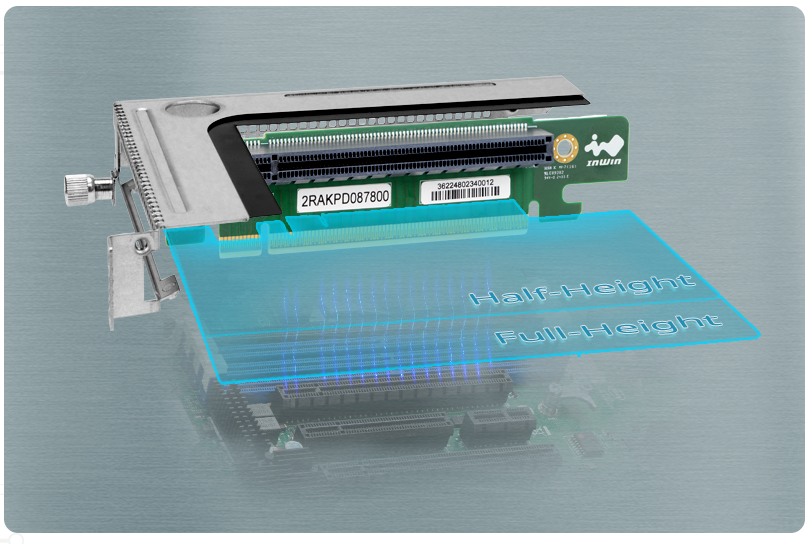

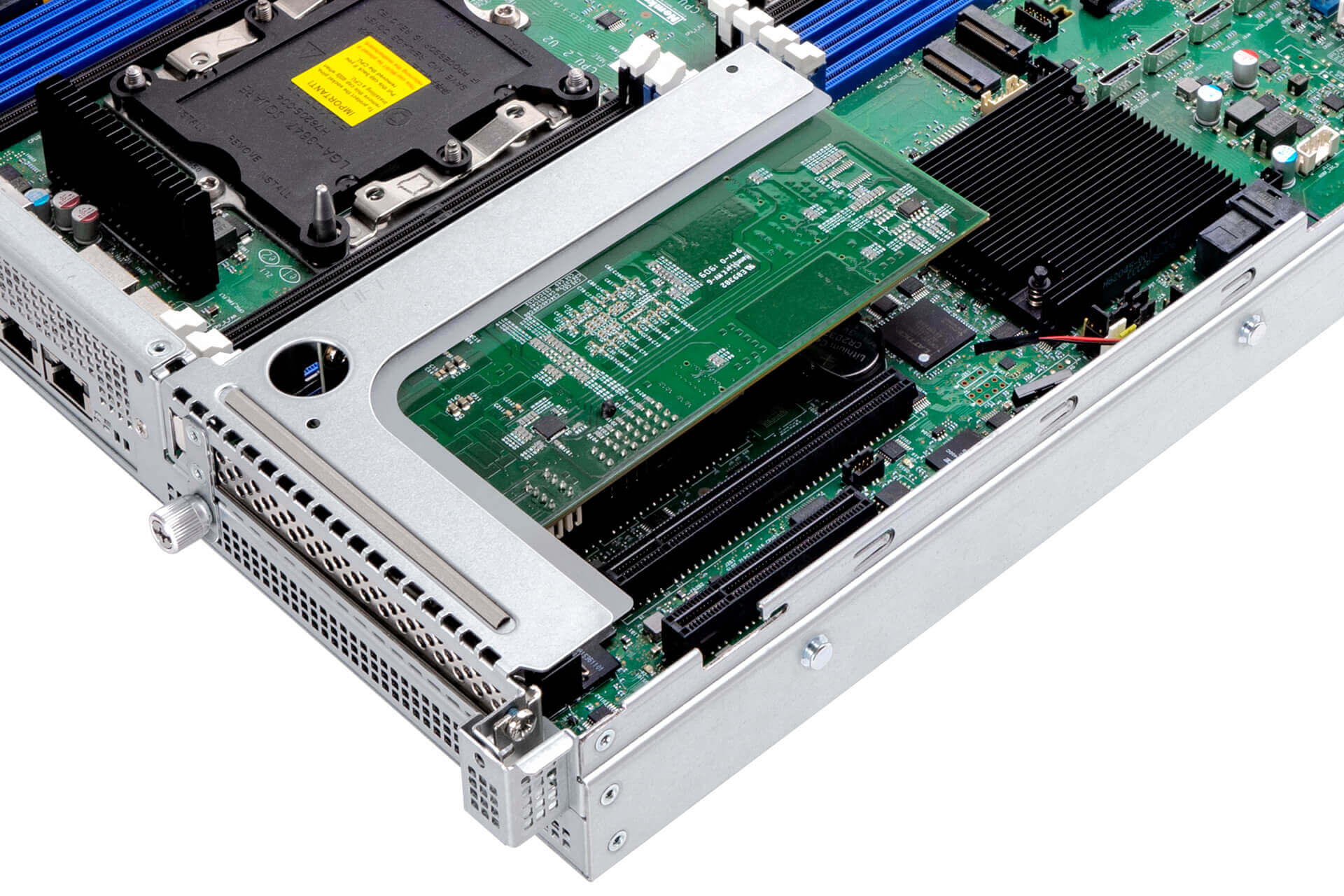

Completely showing the chassis’ compatibility, the IW-RS112-08 supports a a FHFL (full-height, full-length) PCIe slot and (PCIe 4.0 x16 riser card is included).

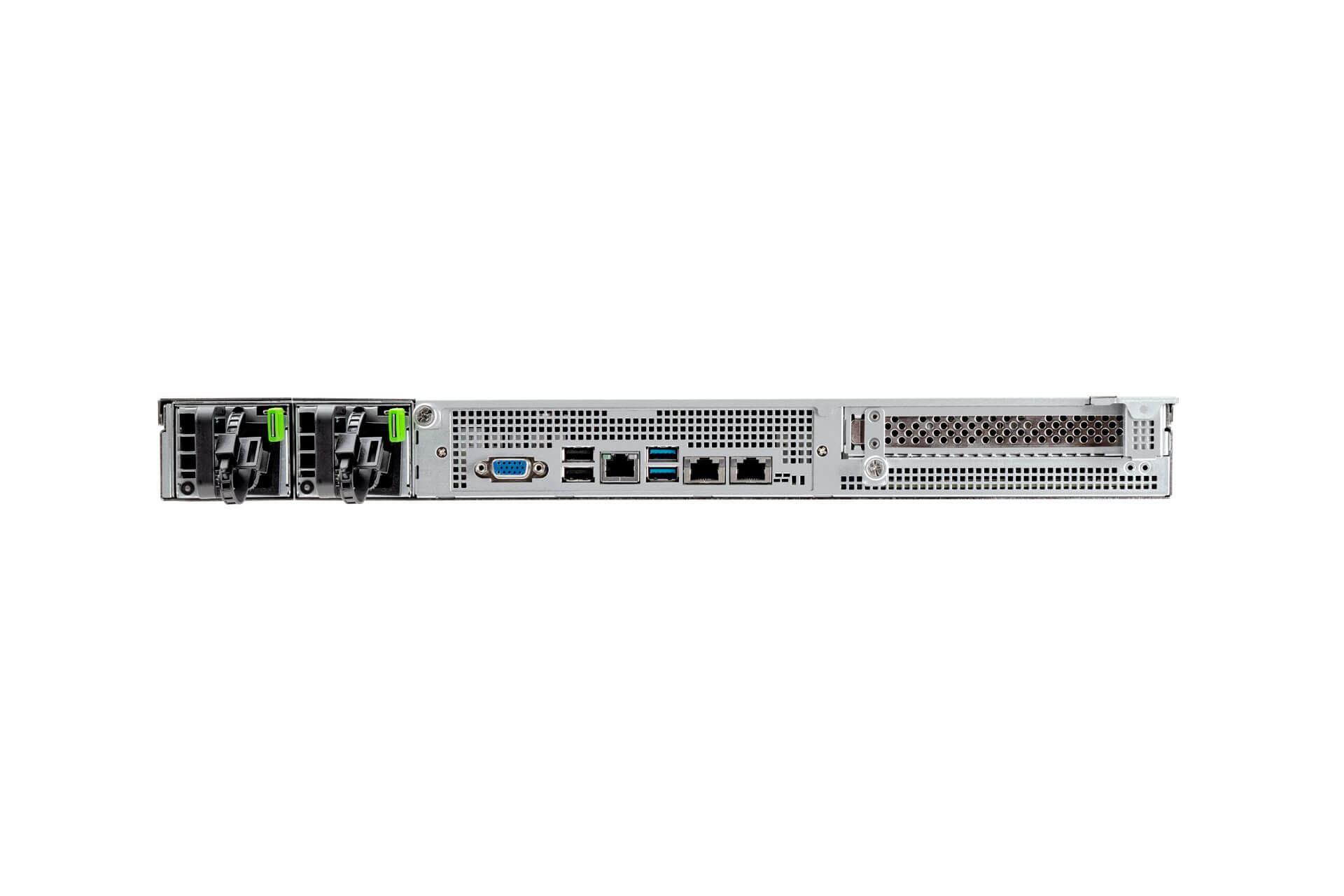

Surpass the Limitation

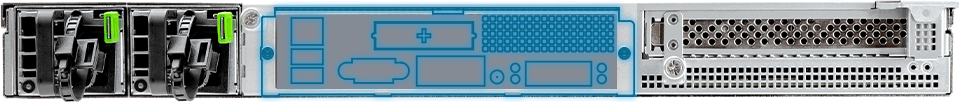

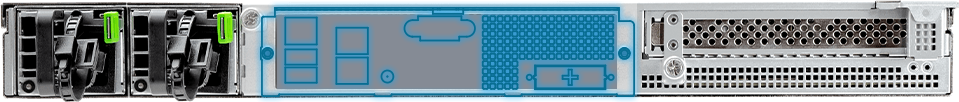

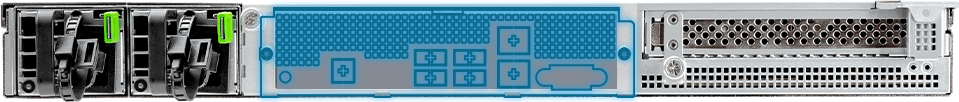

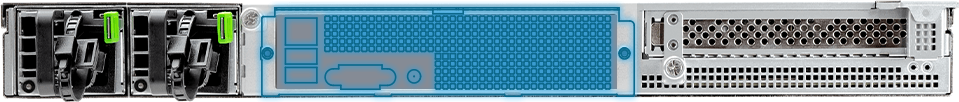

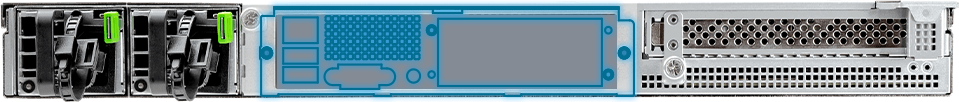

InWin can customize the I/O shield backplate for specific motherboards, with SGCC material to fulfill customers' specific I/O configuration requirements.
Reliability

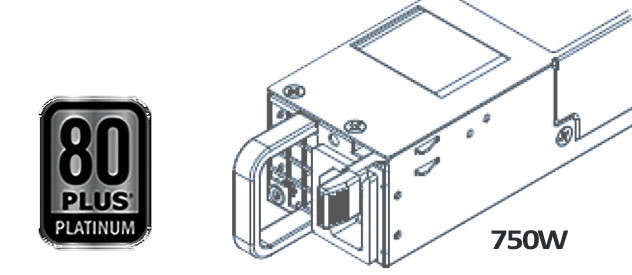

The 1+1 redundant PSU is 80 PLUS® Platinum, delivering up to 92% conversion efficiency, less energy wasted, and powers your system with reliability.

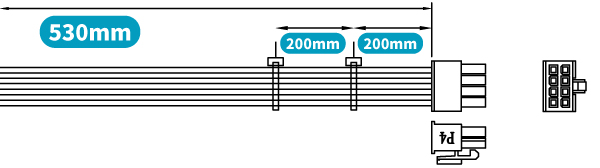

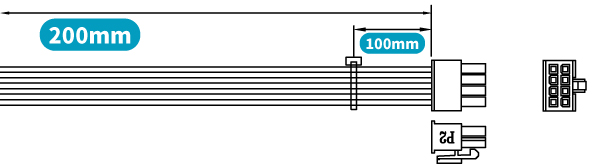

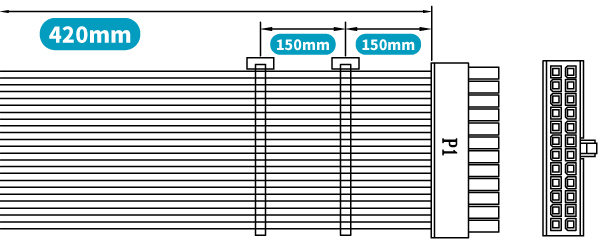

Power Cable Information
20+4 Pin Motherboard

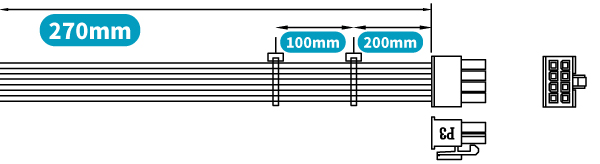

8 Pin CPU
8 Pin CPU
8 Pin Backplane Power

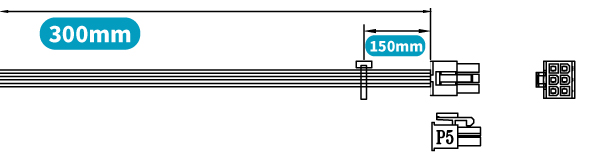

6 Pin Backplane Power

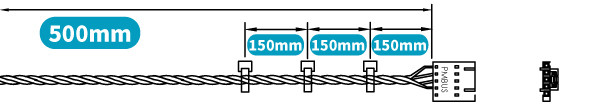

PMBus
Dimensions
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | External •Max. 2.5" hot-swap trays x 12 •Max. U.2 NVMe SSD trays x 4 |
| Power Supply | Supports: • Form factor: 1U redundant PSU, 80 Plus Platinum • Watt: 750W |
| Indicators | Power LED, LAN1/LAN2 LED, System LED, HDD LED, ID LED |
| Front Control Panel | Power on/off, Reset, NMI, ID SW, USB 3.0 x 1 |
| Backplane-1 | • Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654 x8) x 2 • HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 |
| Backplane-2 | • Host: Mini-SAS HD (SFF-8643) x 3 • HDD: SAS/SATA x 12 |
| Backplane-3 | • Host: Mini-SAS HD (SFF-8643) x 3 • HDD: SAS/SATA x 12 |
| Expansion Slot | One full-height PCIe slot with a PCIe Gen4 riser card included (Left-facing 90 degree design) |
| Cooling Fans | • PCIe Gen5 solution: 40 x 56mm PWM fans x 6, 33000 RPM • PCIe Gen4 solution: 40 x 56mm PWM fans x 6, 21500 RPM |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 676.5 x 438 x 43.4mm (26.6" x 17.2" x 1.7") |
| Package Dimensions (DxWxH) | 820 x 590 x 175mm (32.3"x23.2"x6.9") |
| Weight (Chassis Only) | • Net weight: 10.6kg • Gross weight: 12.97kg |
| Cubic Feet | 2.99 |
| Container Information | Single packing with pallets: • 20': 200pcs • 40': 460pcs • 40 HQ: 552pcs |
